Medical stretcher with blue cover and equipment on a white background

ObboMed OB-3650 UltaAir Medical Mattress – Alternating Pressure Lateral Rotation with Low Air Loss for 1-4 Stage 4 Ulcer

by ObboMed
SKU OB-3650
Save 44%
$8,398.00
$4,668.00

Notify me when back in stock

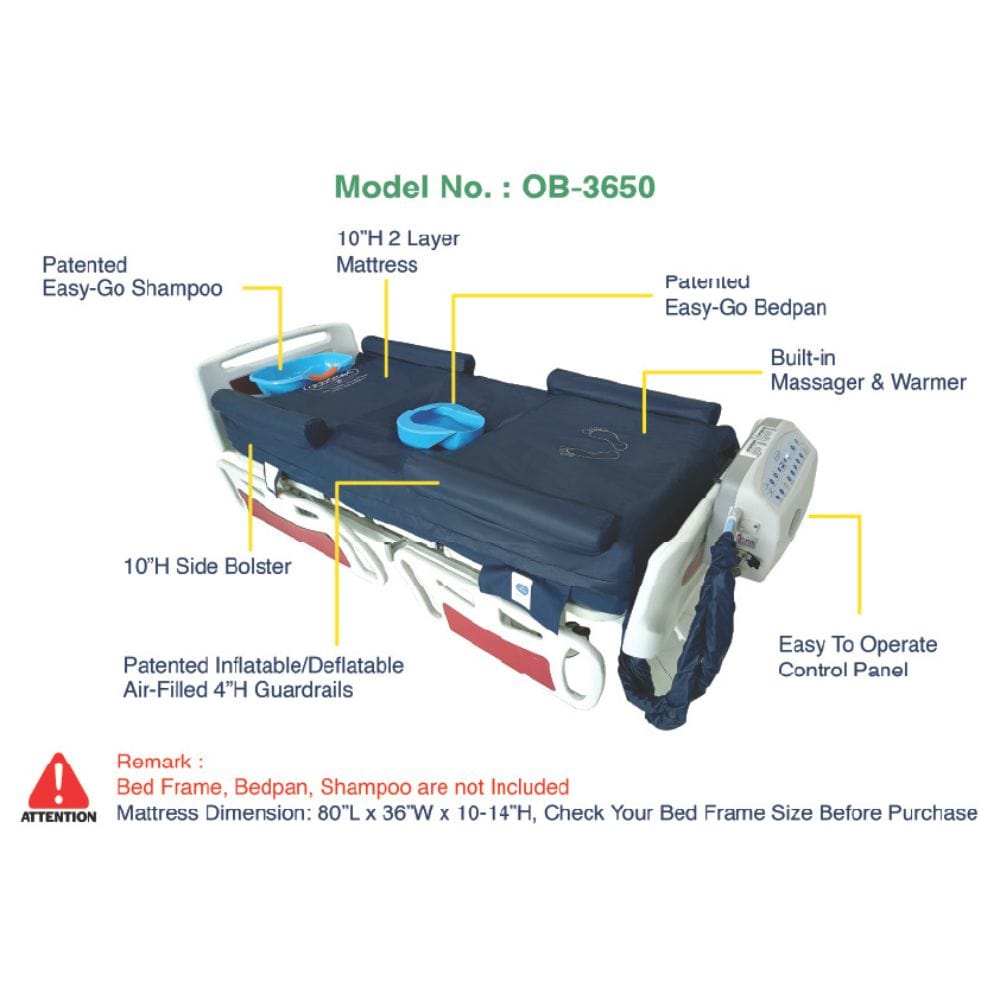

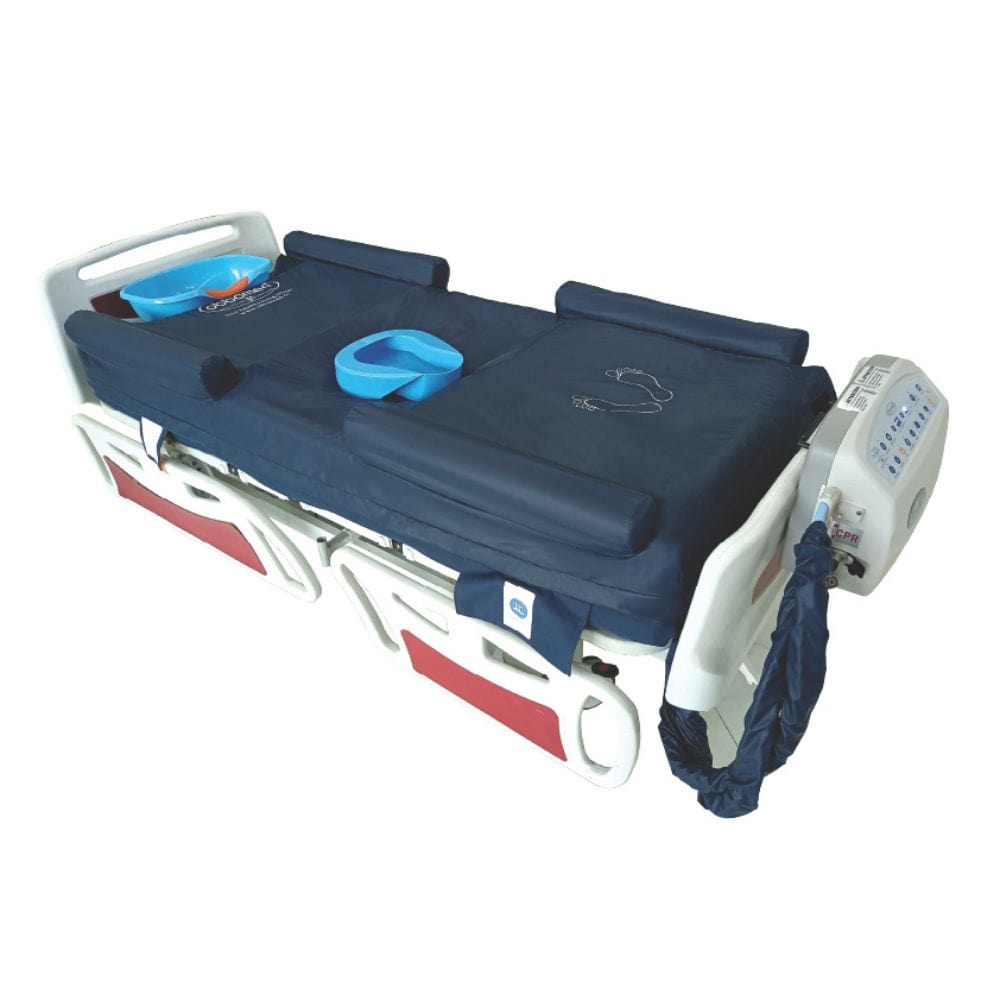

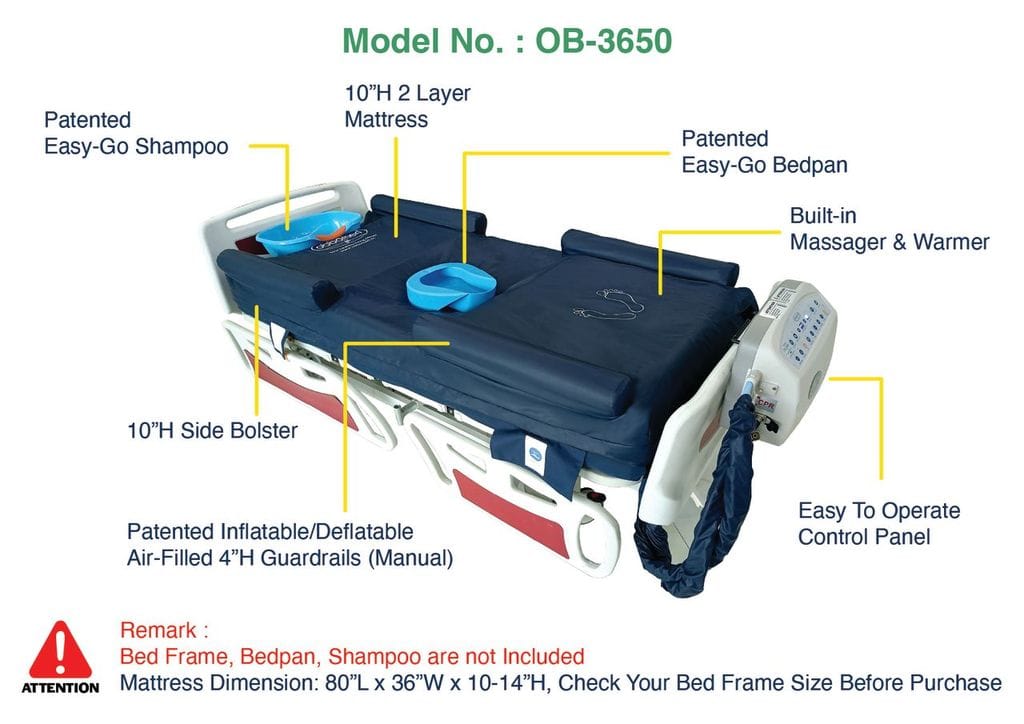

ObboMed OB-3650 UltaAir Medical Mattress – Alternating Pressure Lateral Rotation with Low Air Loss for 1-4 Stage 4 Ulcer

Description

OB-3620 UltraAir helps prevent bedsores and skin breakdown in patients who spend extended periods with alternating air pressure and gentle airflow that relieve pressure on the body and keep the skin cool and dry, reducing the risk of bedsores and irritation so the user can rest more comfortably.

Cell-on-Cell Mattress Design / 24H Power Outage Protection

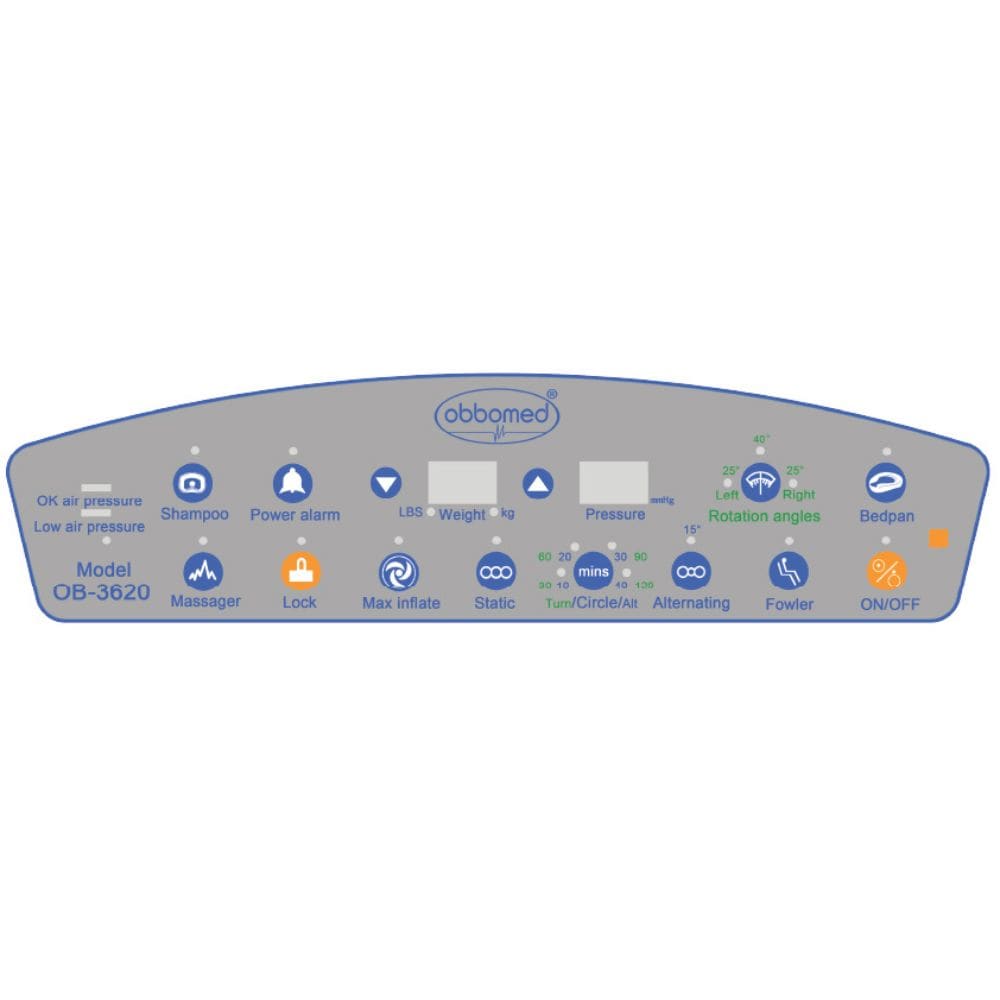

Engineered with a cell-on-cell structure, the mattress ensures up to 24-hour protection during power outages by preventing bottoming out. In the event of power failure, it triggers Audio and visual warning, the bottom layer remains inflated, provided the air hose stays connected to the control unit. The user-friendly control unit, located on the bed’s footboard, manages all essential functions seamlessly.

Multiple Rotation Angles (15°/25°/40°):

Function: 15°/25° Left Turn / 25° Right Turn / 25° Auto Turn / 40° Auto Turn

Designed to accommodate various patient needs, the mattress offers multiple rotation angles of 15°, 25° Right / 25°Left / 25°Auto Rotation, 40° Auto Rotation. This feature increases patient activity, assists in lung function by facilitating phlegm expulsion, reduces the risk of pulmonary infections, and enhances overall physical therapy outcomes.

15° Self-lateral Rotation:

Utilizing specialized air cells, the mattress provides a 15-degree self-lateral rotation by continuously inflating and deflating specific cells. This gentle wave-like motion redistributes the user’s weight, helps improve sleep, alleviates pressure points, stimulates blood circulation, and aids in the prevention of bedsores.

Patented Inflatable Air-Filled Guardrails

Our patented inflatable air-filled guardrails offer a safe, supportive, and patient-friendly alternative to traditional metal side rails. Mid-section opening guardrail allows safe and easy patient entry and exit. Operated with a single button, these soft yet firm air-filled rails can be inflated or deflated as needed. They are designed to prevent falls without the risk of injury, such as bruising, commonly associated with metal guardrails—making them perfect for long-term care or home health settings.

Vibration Massager to Aid Phlegm Removal

This system includes four integrated vibration massagers, controlled by an advanced microprocessor offering multiple massage modes. The vibrations can loosen chest congestion, helping to remove phlegm while also reducing tension, easing pain, promoting blood circulation, and improving overall respiratory health. This makes it a valuable feature for patients with limited mobility or chronic pulmonary conditions.

Integrated Body Warmer for Comfort and Circulation

A built-in warming system gently distributes heat along the patient’s back, positioned directly above the alternating air cells. This soothing warmth helps stimulate blood flow, boost immunity, and promote relaxation, particularly beneficial for those at risk of pressure ulcers or with poor circulation. It enhances patient comfort and healing in any care environment.

Patented “Easy Go” Bedpan Function

The patented “Easy Go” bedpan feature allows caregivers to operate a single-touch button that quickly deflates 4 air cells beneath the buttocks, creating a recessed opening to accommodate a bedpan in just 20 seconds. This innovative bedpan system is designed for in-bed toileting, significantly reducing patient discomfort during transfers and minimizing the caregiver’s physical workload. Ideal for bedridden patients, this feature enhances both safety and hygiene.

Patented “Easy Go” Shampoo Function

The patented “Easy Go” shampoo feature enables in-bed hair washing through a one-touch button operation. The head section of the mattress gently deflates to form a recessed area, allowing a shampoo basin to be positioned within 20 seconds. This simplifies hair washing for immobile patients, avoids unnecessary movement, and provides greater comfort for both patient and caregiver.

Patient-Centered Safety Design

The mattress incorporates a sinking feature that lowers the surface up to 4 inches, plus patented 4″ guardrail to create a 8-inch deep soft barrier. This design ensures patient centralization during alternating pressure and self-lateral rotation, maintaining safety even during 40-degree rotations while allowing easy access for caregivers.

Other Special Feature:

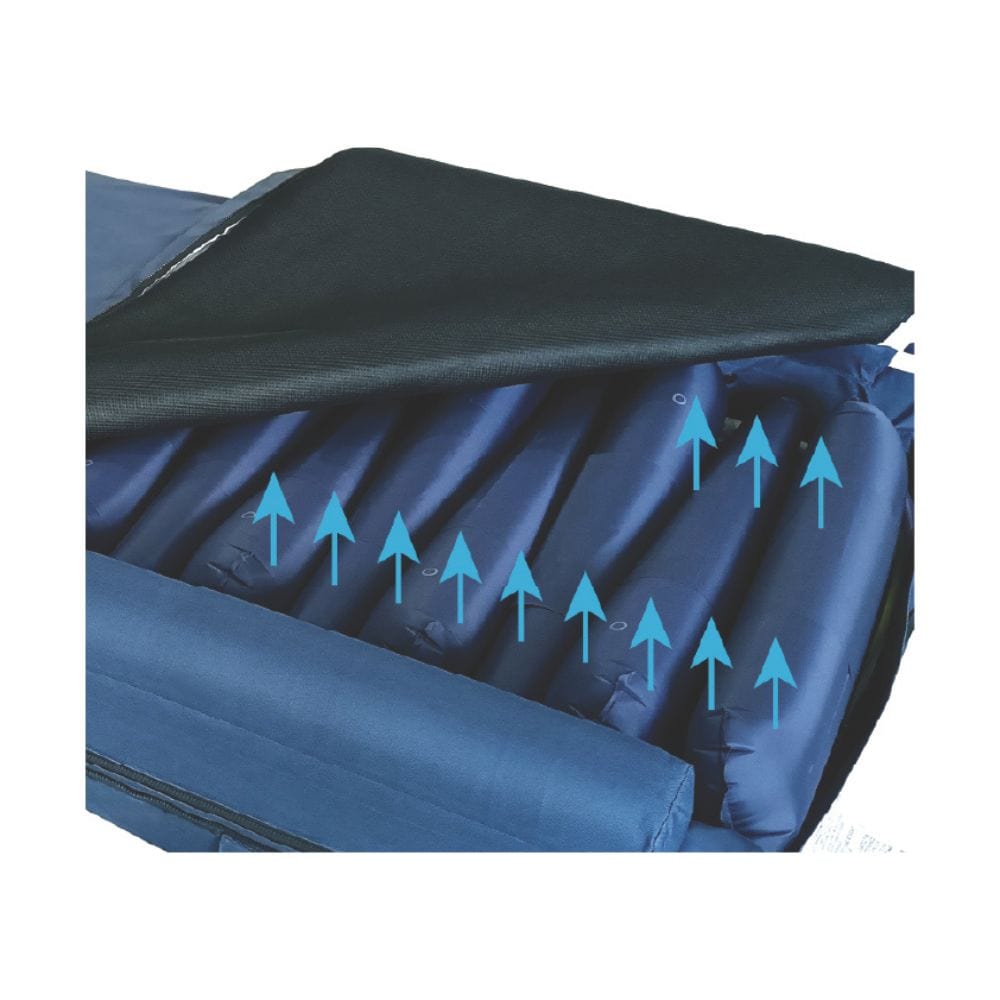

Dynamic True Low Air Loss (LAL) Therapy
+ Built-in Air Flow Fan :

Positioned beneath the cover layer, the Dynamic LAL system delivers airflow at 23 liters per minute combined with a built-in airflow fan, this powerful ventilation system effectively removes moisture and regulates moisture and heat around the patient’s skin, helping to maintain a dry and comfortable microclimate. The result is enhanced comfort and improved skin protection—especially vital for individuals of all ages dealing with stage 1 to stage 4 pressure ulcers.

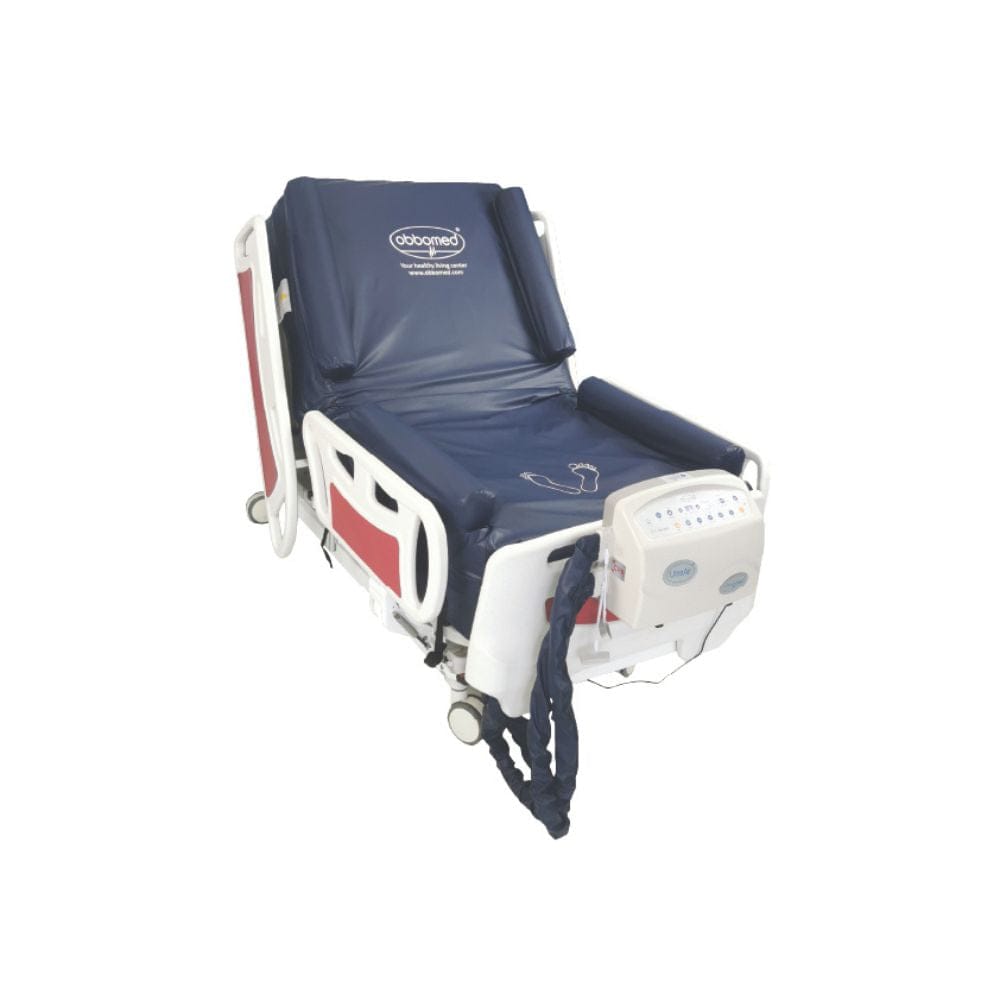

Fowler & Seating

The Fowler function enhances support in the seat and torso sections when the head of the bed is elevated. This design aims to prevent patients from bottoming out, ensuring consistent support and reducing the risk of pressure injuries in seated positions.


Features

Top Cover

  • Antimicrobial properties.
  • Free of latex, lead, and mercury; biocompatible.
  • Anti-allergic and anti-irritating.
  • Liquid-proof barrier.
  • Machine washable.
  • 4-way stretchable PU fabric made in Germany, Quilted underside top cover to minimize frictions and shearing of skin.
  • Fireproof polyurethane (Complies with US standards: 16 CFR 1632, 16 CFR 1633, TB129).
  • Permeable allow Perspiration vacates through the top cover and between the cover boundary to remove moisture and body heat by Low Air Loss function (LAL).

Patented Features

  • Patented “Easy Go”Bedpan
  • Patented “Easy Go” Shampoo
  • Patented Inflatable “Air-Filled” Guardrail
  • 15° Self-Lateral Rotation
  • Multiple Rotation Angel 15°,25°,40°
  • Vibration massager & Warmer

Other Special Feature

  • Dynamic Low Air Loss (23 LPM)
  • Fowler / Seating Function
  • 24-Hour Power Protection
  • Sinking feature – Rotation Protection
  • Centralization

Specifications

  • Mattress Dimension: 80”L x 36”W x 10-14”H
  •  Mattress Weight: 30 lbs
  •  Pump: 50 LPM
  •  Low Air Loss (LAL): 23 LPM
  •  Weight Capacity: 660 lbs
  •  Control Unit Weight: 18.5 lbs
  •  Unit Package Weight: 52.9 lbs
  •  Unit Package Dimension:  19.3″L x 16.9″ W x 27.6″ H

Videos

Special Features

24H Power Outage Protection

Engineered with a cell-on-cell structure, the mattress ensures up to 24-hour protection during power outages by preventing bottoming out.
